DESCRIPTION

Basic Info.

Model NO.	UL20276
Conductor Material	Copper
Sheath Material	No
Insulation Material	PVC
Material Shape	Round Wire
Range of Application	Internal Wiring of Appliance
Certification	ISO9001, RoHS, Reach
Brand	Bort
Standard of Production	RoHS & Reach
Delivery Time for Mass Production	15-30days
Annual Capacity	300,000kms
RoHS & Reach	ISO9001:2008
Color Available	Optional
Delivery Time for Samples	3-5days

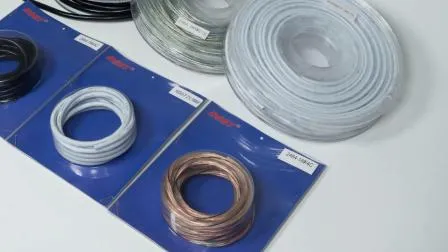

Packaging	Spool/Reel/Drum/Bobbin
Transport Package	Roll, Customization
Specification	1.5-4mm2
Trademark	Bort
Origin	China
HS Code	8544492900
Production Capacity	500000km/Per Year

Product Description

★ Flexing temperature:70ºC
★ Working voltage: 300/500V
★ Reference standard:DIN VDE 0295 cl-1 and IEC 60228 cl-1
★ Solid bare copper conductor
★ PVC insulation, comply with ROHS environmental standard
★ Uniform insulation thickness to ensure easy stripping and cutting
★ suitable for industrial and home applications. It is designed for dry, moist and wet open areas as well
as under plaster, walling and concrete. However, it is not recommended to lay the cable into the compacted
concrete. Outer application is permitted only in the case that cable is not exposed to direct sunlights.

Conductor				Insulation Thick.	Cable Diameter
NO. of cores	mm2	CONSTRUCTION	copper
		NO./mm	kg/km	mm	mm
1	1.5	1	14.4	0.6	5.4
2	1.5	1	29	0.6	8.7
3	1.5	1	43	0.6	9.1
4	1.5	1	58	0.6	9.8
5	1.5	1	72	0.6	10.3
7	1.5	1	101	0.6	11.5
1	2.5	1	24	0.7	6
3	2.5	1	72	0.7	10.4
4	2.5	1	96	0.7	11.3
1	4	1	38	0.8	6.6
3	4	1	115	0.8	12
4	4	1	154	0.8	13
